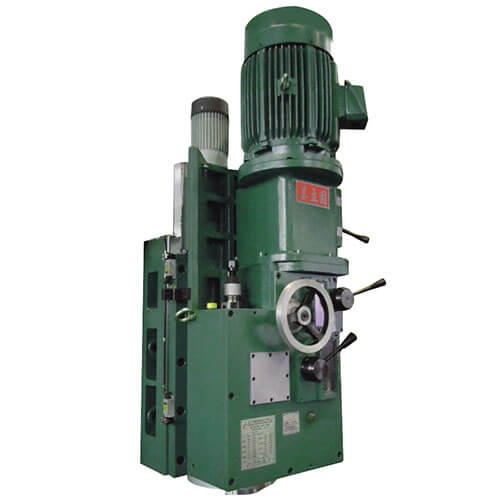

Milling head

ML-08
ML-08
ML-08
ML-08
Product Description
Optional equipment
  • Pneumatic Tool Lock
  • CL-06, CL-09, With 3/ AC motor for feeding device
  • Ball Screw
  • Air Balancer
  • Max. Cutter Dia. Can be up to 315 mm
+Inquiry
Spindle Motor 20(25) HP x 4P
Spindle Taper NT-50#
Spindle End O.D. ф128.57
Spindle Speed 8 step
Spindle Speed (RPM) 50C/S 82.139.174.228.284.375.465.760
60C/S 101.165.207.286.337.465.585.950
Max. Cutter Dia. 250 mm
Work Travel 400 mm
AC Motor 3/4 HP x 1/25
Rapid Speed 540 mm/min
Hand Wheel 2 mm/rev
Weight 900 kg
