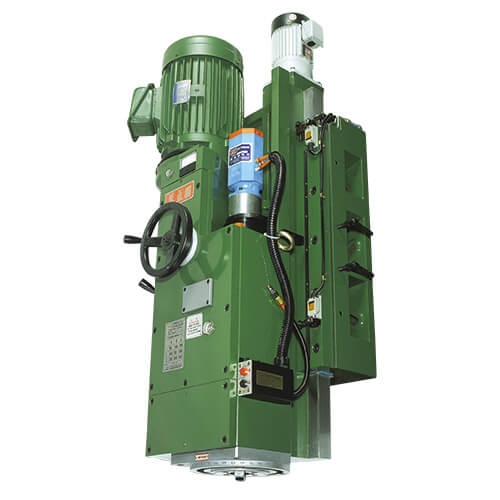

Milling head

CL-09L
CL-09L
CL-09L
CL-09L
Product Description
Optional equipment
  • Pneumatic Tool Lock
  • CL-06, CL-09, With 3/ AC motor for feeding device
  • Ball Screw
  • Air Balancer
  • Max. Cutter Dia. Can be up to 315 mm
+Inquiry
Spindle Motor 15 HP x 4P
Spindle Taper NT-50#
Spindle End O.D. ф128.57
Spindle Speed 9 step
Spindle Speed (RPM) 50 HZ 66.83.116.166.216.291.375.493.662
60 HZ 80.100.140.200.260.350.450.592.795
Max. Cutter Dia. 250 mm
Work Travel 580 mm
AC Motor 3/4 HP x 1/25
Rapid Speed 540 mm/min
Hand Wheel 2 mm/rev
Weight 740 kg
